RG 6/U-6 Cu/Cu

RG 6/U-6 Cu/Cu

RG 6/U-6 Cu/Cu


RG 6/U-6 Cu/Cu

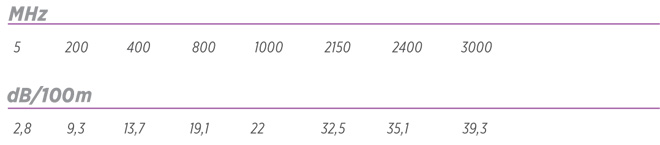

  • It is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation is required.

NOTES
  • PE sheath is avaliable for outdoor application.
  • Flame retardant test is applied for PVC sheathed cables.
Conductor 1,02mm Ø Electrolytic Copper
Insulation 4,60mm Ø Physical Foam PE
1.Screen Cu-Pes Tape (100% Coverage)
2.Screen Electrolytic Copper Braid
Sheath 6,80mm Ø PVC Compound Black/Green
Total Weight PVC 52kg/km
Standard Length 100/500/1000/2000m

INSULATION
RESISTANCE		 MUTUAL
CAPACITANCE		 VELOCITY OF
PROPAGATION		 OPERATING
VOLTAGE		 TEST
VOLTAGE		 BENDING
RADIUS		 TEMPERATURE
RANGE		 IMPEDANCE FLAME RETARDANT
TEST
>2000MΩxkm 53±2 pF/mt 82 % 1,3 kV 3 kV 20x Cable Ø -40ºC+70ºC 75±3 Ω IEC 60332-1-2
DIN EN 60332-1-2
EN 60332-1-2




TSE  -   Download
