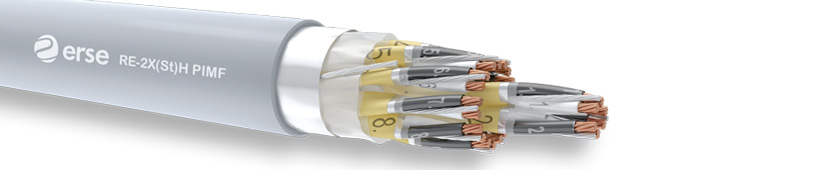

RE-2X(St)H-PIMF

RE-2X(St)H-PIMF

RE-2X(St)H-PIMF


RE-2X(St)H-PIMF
  • Indoor environments intensely populated by people where there is electromagnetic interference.
  • Instrumentation and control engineering analog and digital signal transmission
  • Petroleum refineries
  • Petrochemistry industry
  • Power plants
  • Natural gas pump stations
  • Dry-moist and wet places, at indoor
  • Gas Stations
  • Water Conveyance Systems

NOTES

  • EMC*: Electromagnetic compatibility
  • Ral 5015 blue sheath*: At ex-proof connections in explosive and in flammable environments, intrinsically safe
  • Ral 9005 black sheath*: Places where UV resistance is required
  • Ral 7001 grey sheath*: Inside of buildings
Conductor IEC 60228 / DIN VDE 0295 / EN 60228
Insulation EN 50290-2-29 XLPE COMPOUND
Colour Code BS 5308-1 OR BLACK-WHITE
EACH PAIR NUMBERED
Individual Screen PES TAPE; TINNED DRAIN WIRE; AL-PES TAPE
Stranding PAIRWISE, SCREENED PAIRS IN LAYERS
Wrapping PES TAPE
Overall Screen TINNED COPPER DRAIN WIRE; AL-PES TAPE
Sheath EN 50290-2-27 LSZH COMPOUND
Sheath Colour RAL 5015* BLUE; RAL 9005* BLACK
OR RAL 7001* GREY

CONDUCTOR
RESISTANCE
CLASS2(MAX)		 INSULATION
RESISTANCE
(MIN)		 MUTUAL
CAPACITY
(MAX)		 TEMPERATURE
RANGE		 FLAME
PROPAGATION		 L/R(RATIO)
(MAX)		 CURRENT
LOAD(25ºC)
mm2
0,50
0,75
1,0
1,3
1,5		 Ω/km
36
24,5
18,1
13,9
12,1

MΩxKm


5000

mm2
0,50
0,75
1,0
1,3
1,5		 pF/m
100
100
100
100
100		 -30ºC+90ºC
(FIXED LAYING)		 IEC 60332-3-24
VDE 0482-332-3-24
EN 60332-3-24
BS EN 60332-3-24		 mm2
0,50
0,75
1,0
1,3
1,5		 µH/Ω
25
25
25
40
40		 mm2
0,50
0,75
1,0
1,3
1,5		 A
6,0
13
16
18
20
OPERATING
VOLTAGE		 TEST
VOLTAGE		 BENDING
RADIUS		 SMOKE DENSITY TEST ON CORROSIVENESS
OF COMBUSTION GASES		 HALOGEN
FREE TEST
300/500 V. Cr./Cr.=2000 V
Cr./Scrn.=2000 V		 7,5 X Cable Ø IEC 61034-2
VDE 0482-1034-2
EN 61034-2
BS EN 61034-2		 IEC 60754-2
VDE 0482-267-2-3
EN 50267-2-3
BS EN 50267-2-3		 IEC 60754-1
VDE 0482-267-2-1
EN 50267-2-1
BS EN 50267-2-1

CODE NR. NUMBER OF CORE AND CROSS
SECTION (mm2)		 OVERALL DIAMETER
(mm)		 COPPER WEIGHT
(kg/km)		 APPROX. CABLE WEIGHT
(kg/km)		 STANDART LENGTH (m)
380050020 2 x 2 x 0,50 9,40 32 88 500/1000
380050040 4 x 2 x 0,50 10,90 60 140 500/1000
380050060 6 x 2 x 0,50 13,00 88 221 500/1000
380050080 8 x 2 x 0,50 14,50 115 265 500/1000
380050100 10 x 2 x 0,50 17,10 143 334 500/1000
380050120 12 x 2 x 0,50 17,60 170 373 500/1000
380050160 16 x 2 x 0,50 19,80 225 483 500/1000
380050200 20 x 2 x 0,50 21,90 280 575 500/1000
380050240 24 x 2 x 0,50 24,60 336 688 500/1000

380075020 2 x 2 x 0,75 10,10 42 107 500/1000
380075040 4 x 2 x 0,75 11,90 79 179 500/1000
380075060 6 x 2 x 0,75 14,50 116 271 500/1000
380075080 8 x 2 x 0,75 15,60 154 318 500/1000
380075100 10 x 2 x 0,75 18,60 191 400 500/1000
380075120 12 x 2 x 0,75 19,20 228 457 500/1000
380075160 16 x 2 x 0,75 21,60 302 601 500/1000
380075200 20 x 2 x 0,75 24,20 377 732 500/1000
380075240 24 x 2 x 0,75 17,00 451 877 500/1000

380001020 2 x 2 x 1 10,90 51 121 500/1000
380001040 4 x 2 x 1 12,80 98 211 500/1000
380001060 6 x 2 x 1 15,70 145 318 500/1000
380001080 8 x 2 x 1 17,10 192 385 500/1000
380001100 10 x 2 x 1 20,20 239 484 500/1000
380001120 12 x 2 x 1 21,00 285 556 500/1000
380001160 16 x 2 x 1 23,40 379 701 500/1000
380001200 20 x 2 x 1 26,30 473 855 500/1000
380001240 24 x 2 x 1 29,50 566 1021 500/1000

380013020 2 x 2 x 1,3 11,90 63 163 500/1000
380013040 4 x 2 x 1,3 13,70 120 242 500/1000
380013060 6 x 2 x 1,3 16,90 179 378 500/1000
380013080 8 x 2 x 1,3 18,30 237 447 500/1000
380013100 10 x 2 x 1,3 21,70 295 561 500/1000
380013120 12 x 2 x 1,3 22,60 353 658 500/1000
380013160 16 x 2 x 1,3 25,40 467 864 500/1000
380013200 20 x 2 x 1,3 28,30 585 1020 500/1000
380013240 24 x 2 x 1,3 31,80 700 1210 500/1000

380015020 2 x 2 x 1,5 12,20 70 160 500/1000
380015040 4 x 2 x 1,5 14,60 135 245 500/1000
380015060 6 x 2 x 1,5 17,40 200 401 500/1000
380015080 8 x 2 x 1,5 19,00 265 475 500/1000
380015100 10 x 2 x 1,5 22,70 331 601 500/1000
380015120 12 x 2 x 1,5 23,40 396 701 500/1000
380015160 16 x 2 x 1,5 26,30 526 910 500/1000
380015200 20 x 2 x 1,5 29,60 657 1106 500/1000
380015240 24 x 2 x 1,5 32,90 787 1330 500/1000
